EN 14470-1 TYPE 90

Asecos

Asecos S-CLASSIC-90

Asecos S-CLASSIC-90 – Robust chemical storage cabinet for flammable substances

The Asecos S-CLASSIC-90 cabinet is a trusted solution for the safe indoor storage of flammable hazardous substances, tested according to EN 14470-1. Its robust steel construction, 90-minute fire resistance and modular interior make it a reliable choice for laboratories and industrial workplaces.

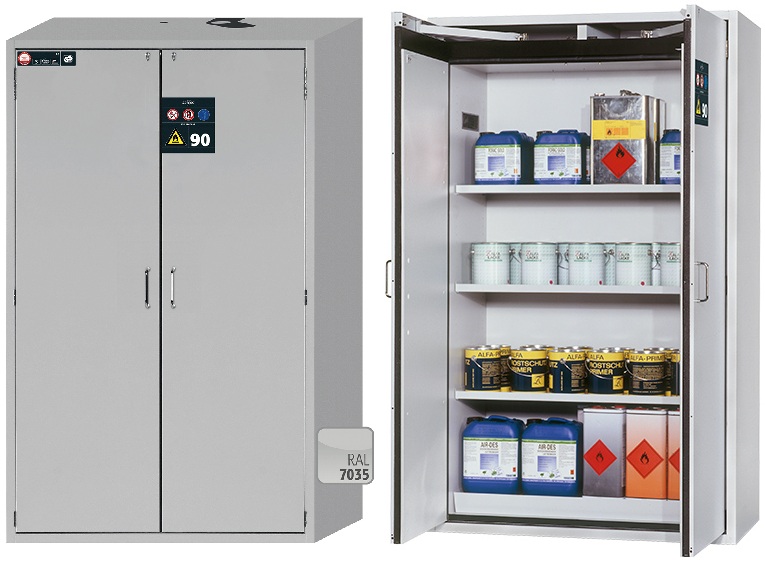

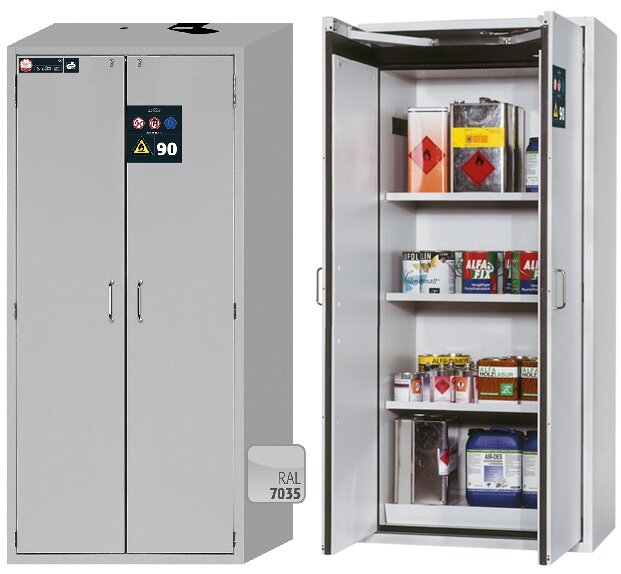

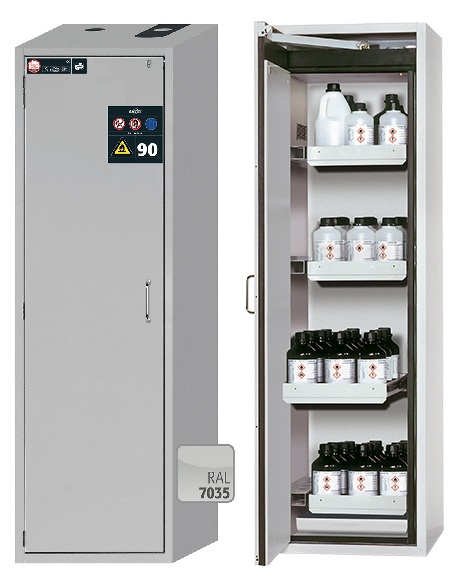

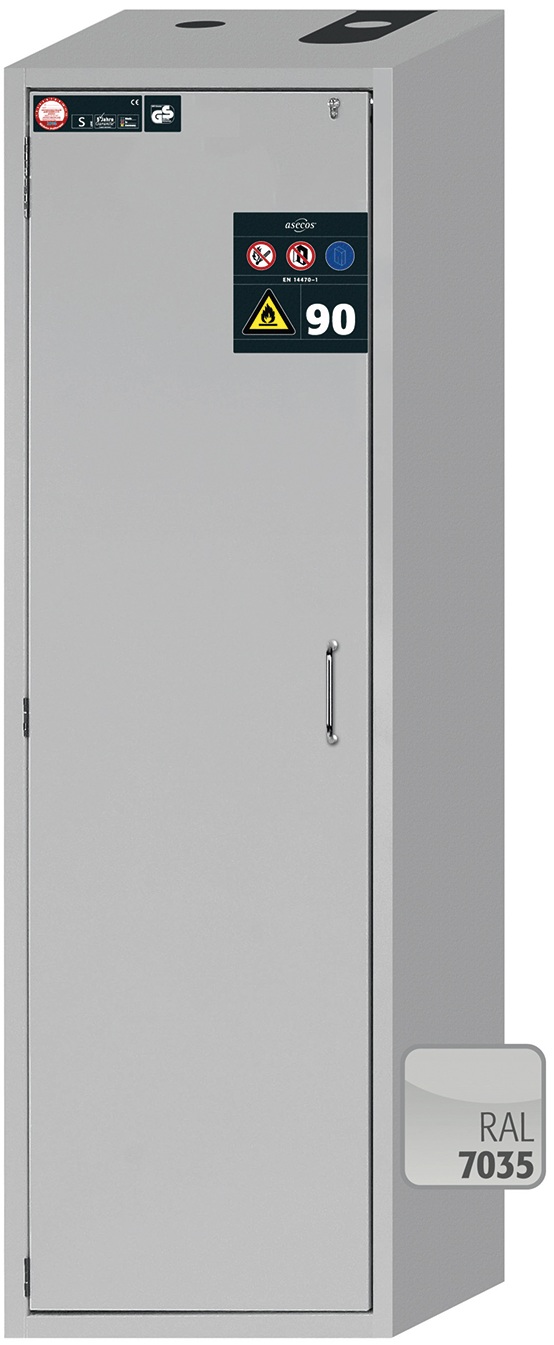

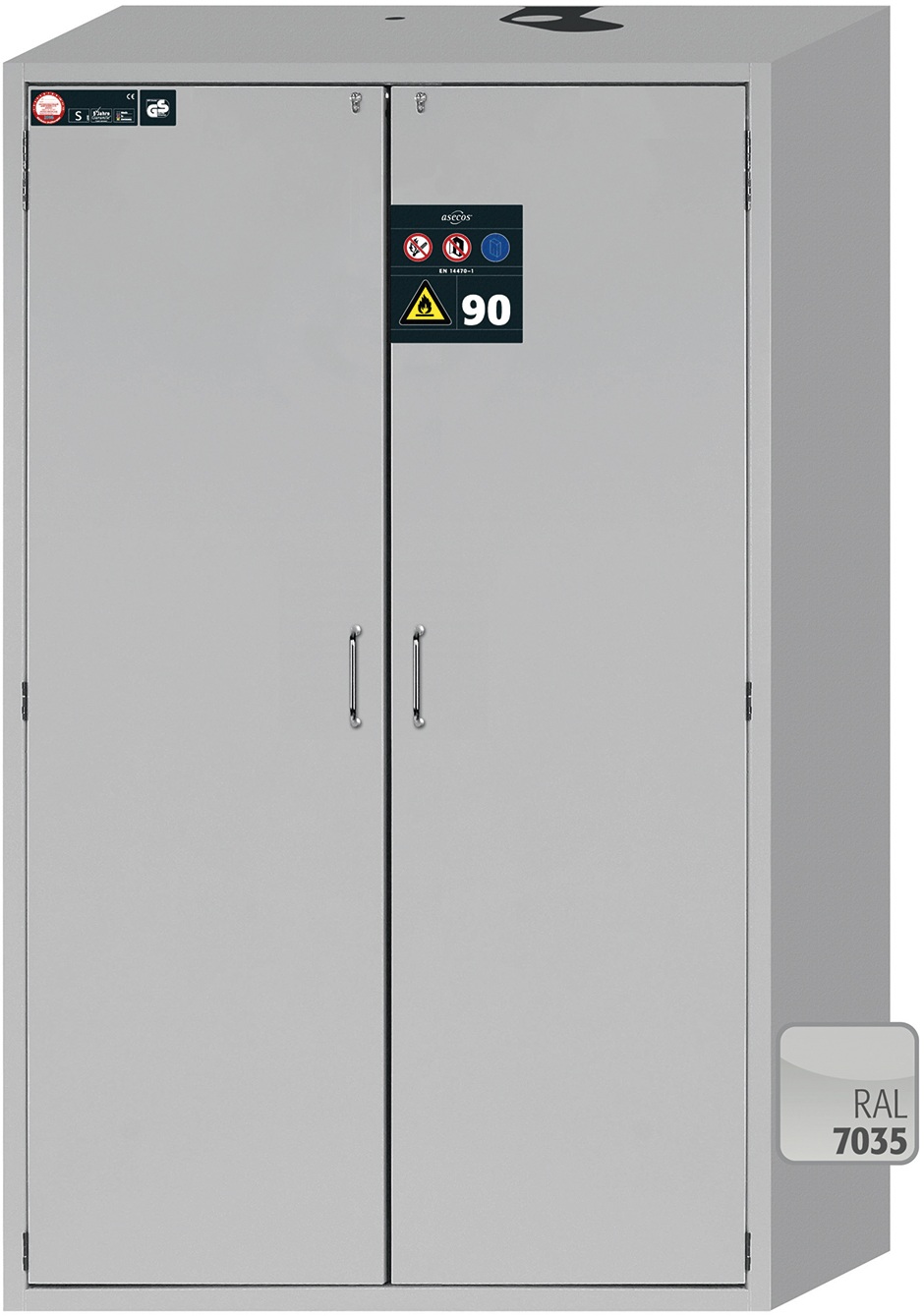

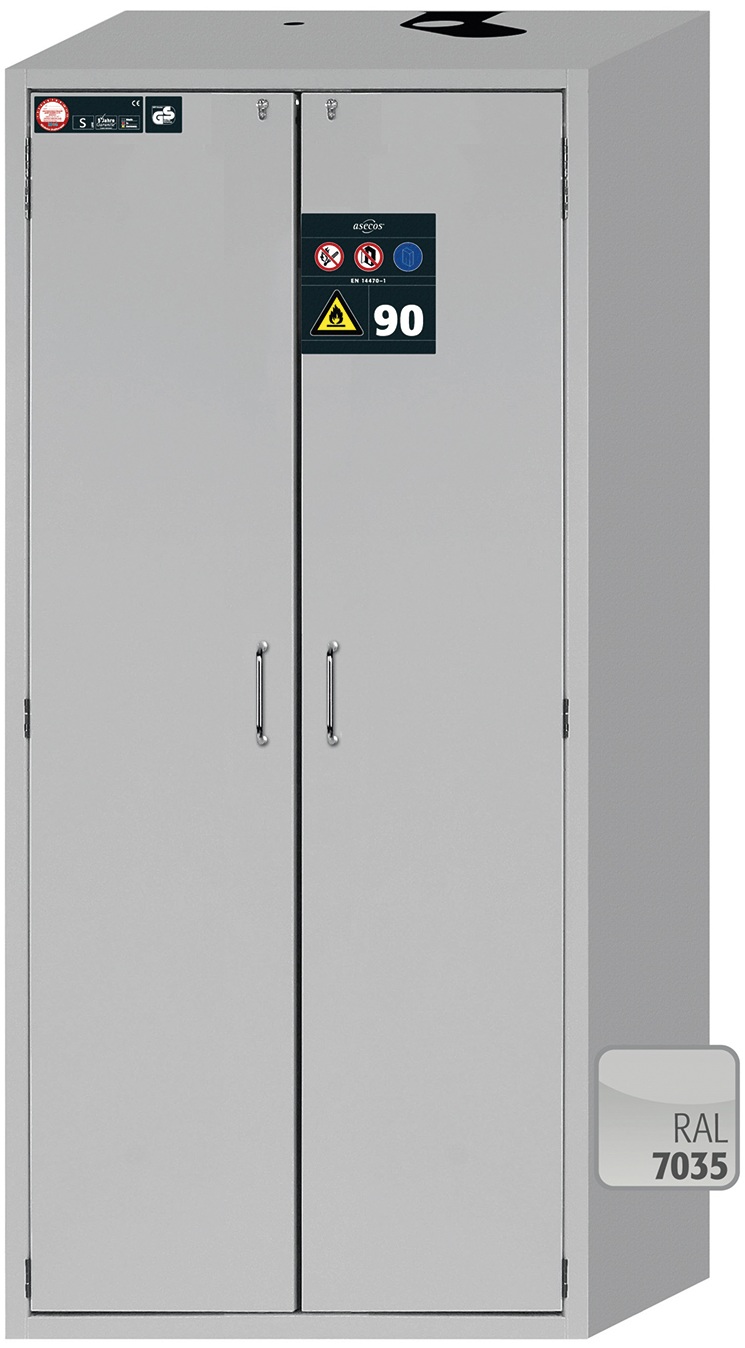

The outer housing in light grey (RAL 7035) powder-coated steel is highly durable. The triple-hinged doors close smoothly and can be locked using a standard cylinder lock, compatible with central locking systems. Levelling feet compensate floor irregularities for stable positioning.

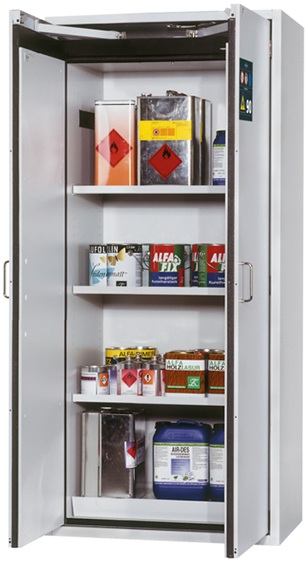

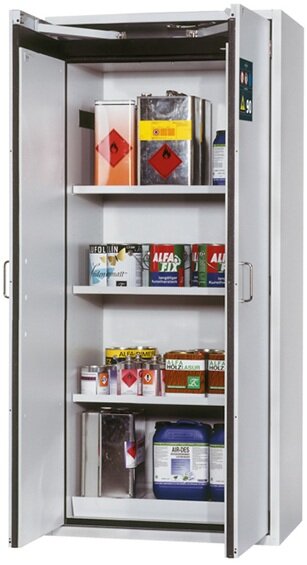

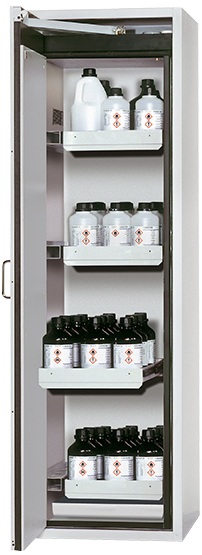

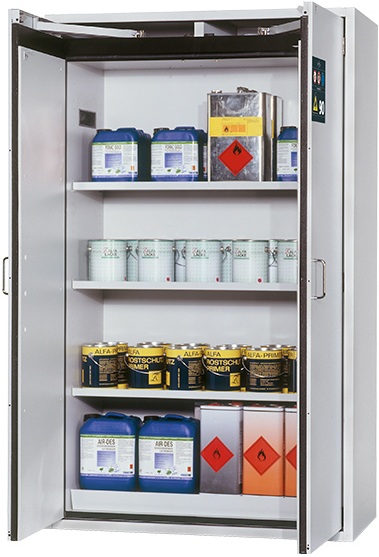

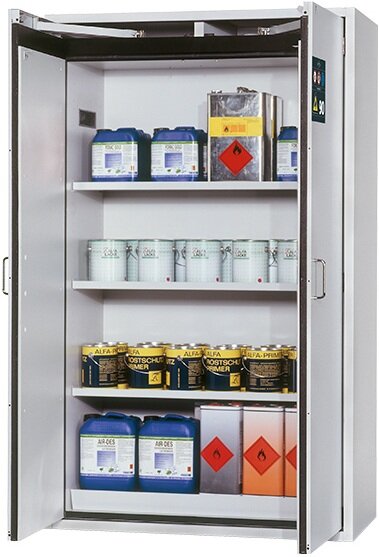

Integrated ventilation ducts (DN 75) allow safe connection to a mechanical exhaust system, preventing explosive atmospheres. The modular interior setup supports both small containers and larger drums, with a full range of chemical-resistant accessories available.

The Belgian rules for storing flammable liquids, from the Code to the regional thresholds, are explained in our guide to the storage of hazardous substances.

See also our other safety cabinets for flammable products, supplied and installed by our own team in Belgium.

Print

Additional information

  • 90 minutes fire resistance (type 90), tested according to EN 14470-1
  • GS-certified (document EK5/AK4 09-10, ProdSG)
  • Conforms to EN 16121 and EN 16122 (safety, strength, durability)
  • Stable outer shell in light grey (RAL 7035) with triple-hinged doors
  • Complete locking system with corrosion-resistant safety elements
  • Doors lockable with cylinder lock (central locking system ready)
  • Levelling feet to compensate floor unevenness up to 10 mm
  • Ventilation ducts (DN 75) for connection to exhaust system
  • Flexible interior options:
    • Adjustable shelves with safety lip
    • Pull-out drawers for small containers
    • Spill containment trays (steel, stainless steel, polypropylene)

Model specifications

Fire-resistant EN 14470-1 TYPE 90

Model Outer dimensions (mm) Internal dimensions (mm) Volume (L) Weight (kg) Shelves
1822 Asecos S90.196.060 H1968 W596 D616 H1742 W450 D524 411 L 272 kg 0
1823 Asecos S90.196.090 H1968 W896 D616 H1742 W750 D524 685 L 357 kg 0
1824 Asecos S90.196.120 H1968 W1196 D616 H1742 W1050 D524 958 L 435 kg 0
1839 Asecos S90.129.060 H1298 W596 D616 H1072 W450 D524 253 L 194 kg 0
1840 Asecos S90.129.120 H1298 W1196 D616 H1072 W1050 D524 590 L 320 kg 0

*External depth excluding hinges, handle, or lock.
