Class S2
30P

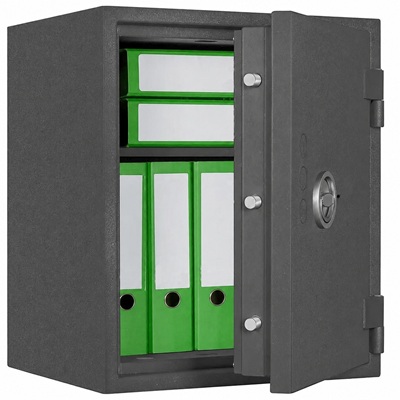

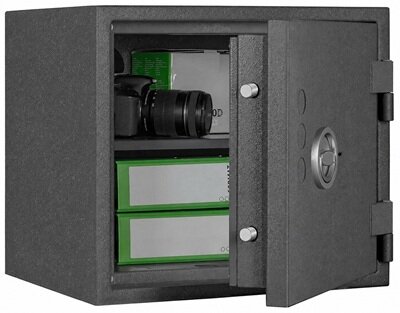

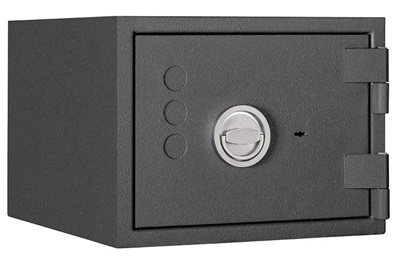

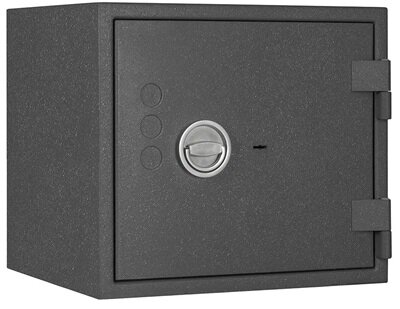

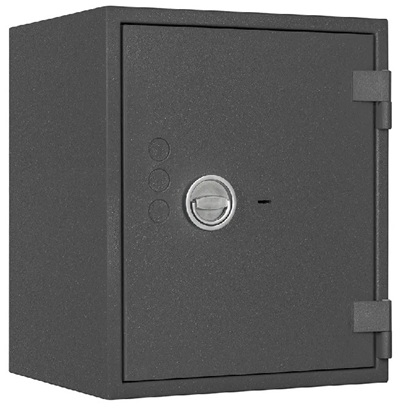

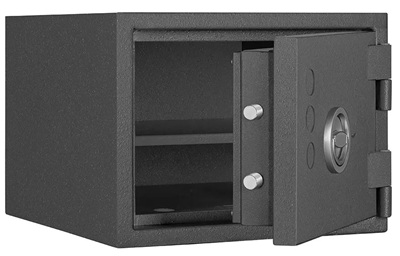

ATB PSL – fire-resistant S2 document cabinet according to EN 14450 and EN 15659 LFS 30 P

The ATB PSL range consists of fire-resistant document cabinets for the secure storage of paper documents, files, binders and valuables. The cabinets are certified according to EN 14450, security level S2, and offer 30 minutes of fire protection for paper documents according to EN 15659, LFS 30 P.

The range includes both compact single-door models and larger two-door archive cabinets. The single-door models combine limited depth with a practical internal volume. Depending on the model, the capacity ranges from 24 to 64 litres.

For larger archiving needs, the ATB PSL range offers two-door models with a significantly larger storage volume. These fire-resistant archive cabinets are designed for the storage of binders and administrative documents and, depending on the version, offer capacity for 28 to 75 DIN A4 binders. The internal volume ranges from 343 to 919 litres.

The cabinets are equipped with a four-sided door locking system and a double-bit high-security lock with two keys. The door opens up to 180°, ensuring easy access to the contents. The single-door models are supplied with right-hand hinges as standard.

The ATB PSL fire-resistant document cabinets are prepared for floor anchoring and are supplied with anchoring material. The single-door models also include an additional rear-wall drilling. The single-door models are finished in graphite grey RAL 7024. The larger two-door versions are available in light grey RAL 7035.

Print

Additional information

Fireproof 30 min for paper
Burglary-resistant Security level S2

  • Tested and certified by ECB.S in accordance with European standard EN 14450 security level S2
  • Fire resistant tested 30 minutes for paper according to EN 15659 LFS 30P
  • Three-sided locking by means of steel bolts
  • Hook-in profile on the hinge side
  • Standard equipped with double bit key lock
  • Height adjustable shelves
  • Prepared for anchoring

Model specifications

Burglary resistant class S2 Fire resistant 30P

Model Outer dimensions (mm) Internal dimensions (mm) Volume (L) Weight (kg) Shelves
1661 PSL 2 H325 W430 D450 H235 W332 D304 24 L 57 kg 1
1662 PSL 3 H450 W505 D450 H360 W407 D304 45 L 795 kg 1
1663 PSL 4 H605 W505 D450 H515 W407 D304 64 L 97 kg 1
1664 PSL 60 H817 W1252 D570 H700 W1156 D425 343 L 305 kg 1
1665 PSL 70 H1557 W1252 D570 H1440 W1156 D425 706 L 510 kg 3
1666 PSL 80 H1867 W1010 D570 H1750 W915 D425 678 L 495 kg 4
1667 PSL 90 H1867 W1335 D570 H1750 W1238 D425 919 L 615 kg 4

*External depth excluding hinges, handle, or lock.
